Car Leaking Oil? Oil Leak Repair in Manchester, NH Starts With Finding the Real Source

It usually starts with a dark spot on the driveway that wasn't there in the spring. Or a burning smell drifting through the vents the first cold morning you switch the heat on. Or a technician at a quick oil change handing back your keys with "you've got a leak, by the way" and nothing else. However it arrived, the question is the same: is this a gasket that can wait until next month, or the start of something expensive? Oil leak repair in Manchester, NH answers that by doing one thing before anything else — finding where the oil is actually coming from.

That sounds obvious. It isn't, because oil almost never drips from the place it escapes. It runs downhill along the engine, gets dragged backward by the air moving under the car, and soaks into whatever sits lowest before it ever reaches your driveway. The spot under your car proves a leak exists. It doesn't tell you where — and the gap between a gasket on top of the engine and a seal behind it is the gap between a short job and one where the transmission has to come out. This guide covers how to confirm it's oil, the symptoms that show up before the puddle, where leaks really start, how we trace them, and which ones can wait.

First, make sure it's actually engine oil

A car carries five or six different fluids, and a spot on the ground is the cheapest diagnostic information you will ever collect. Slide a piece of white cardboard under the engine overnight and look at it in daylight:

• Engine oil — light amber when fresh, dark brown to black once it has been in service. Slick between your fingers, with very little smell unless it has been cooked on something hot. It usually lands under the engine, toward the front of the car.
• Transmission fluid — red or pinkish on most automatics, turning brownish as it ages. It usually lands a little farther back, under the middle of the car.
• Coolant — green, orange, pink, or blue, thin and watery, with a distinctly sweet smell.
• Brake fluid — clear to light yellow and slippery, usually found near a wheel or along a brake line. Any brake fluid leak is a stop-driving leak.
• Power steering fluid — red or amber, near the front of the engine on vehicles that still use a hydraulic system.
• Clear water that dries without a trace — condensation from the air conditioning. That one is normal.

If the spot is red, our guide to early transmission symptoms covers what that leak means. If it's colored and sweet-smelling, start with cooling system repair instead. Everything below is about engine oil.

Oil leak symptoms that show up before the puddle

Plenty of oil leaks never leave a spot at all. The oil cooks off a hot surface or gets caught by a plastic underbody panel before it can fall. These are the signs worth paying attention to:

A burning smell when you turn the heat on

This is the classic October complaint in New Hampshire. The fresh-air intake for your heater sits at the base of the windshield, just behind the engine. A valve cover gasket leaking onto a hot exhaust manifold makes a sharp, acrid smell, and the first cold morning you run the heat, the system pulls it straight into the cabin. The leak has often been there all summer, hidden by open windows and an air conditioner set to recirculate. The heater just introduces you to it.

Light smoke from under the hood at a stoplight

Wisps of bluish-white smoke rising from the engine bay after a drive — most noticeable when you stop, because there's no airflow to carry them away — usually mean oil is landing on the exhaust manifold or a turbocharger. It smells like burning oil, not sweet like coolant. It shouldn't be lived with, and we'll come back to why.

An oil level that drops between changes

Check the dipstick once a month on level ground — or the oil level readout in the instrument cluster, on cars that no longer have a dipstick. If you're adding oil between changes, it's going somewhere: out of the engine through a leak, or through the engine and out the tailpipe. Both are worth knowing about, and they are fixed in very different ways.

A wet, grimy engine underside

Oil attracts dirt. A slow seep shows up as a dark, damp film caked with road grime on the bottom of the engine, the oil pan, or the transmission bellhousing, often long before anything reaches the ground. If someone mentioned a leak at your last oil change, this is usually what they saw.

A misfire or a check engine light

On many engines the spark plugs sit in tubes that pass through the valve cover, each sealed by its own small gasket. When those seals fail, oil pools around the plugs and ignition coils, breaks down the coil boots, and can cause a misfire — a rough idle, a stumble under load, or a flashing check engine light. That's an oil leak showing up as an ignition problem, and replacing the coil the code points at won't hold until the seal is fixed.

Where oil leaks actually start

An engine is sealed by a long list of gaskets and seals, and every one of them is rubber, cork, paper, or a bead of sealant that has been heated and cooled thousands of times. These are the places leaks start most often, roughly from the top of the engine down:

• Valve cover gasket. The cover on top of the cylinder head is sealed by a rubber gasket that hardens and shrinks with age. It's one of the most common oil leaks on any engine, and because it sits above everything else, its oil ends up all over the parts below it. The spark plug tube seals are often replaced at the same time.
• Oil filter housing and oil cooler gaskets. Many engines mount the filter in a housing bolted to the block, often with an oil cooler attached. The gaskets between them are a known leak point on a number of European engines and some domestic V6s, and on some designs the housing itself is plastic and can crack.
• Oil filter and drain plug. A double-stacked filter gasket, a reused or missing drain plug washer, or stripped threads in the pan. A leak that appears right after an oil change starts here until proven otherwise.
• Oil pan gasket. The seal around the reservoir at the bottom of the engine. On some vehicles the pan comes off quickly; on others a subframe, crossmember, or exhaust section has to be lowered first.
• Timing cover and front crankshaft seal. At the front of the engine, behind the main pulley — where the accessory belt can fling the oil around the engine bay.
• Camshaft seals and plugs. At the ends of the cylinder head, often hidden behind covers.
• Oil pressure switch or sensor. A small part threaded into the engine that can leak through its own body. A cheap part with a leak that often looks far worse than it is.
• Turbocharger oil lines. On turbocharged engines, the lines that feed and drain oil from the turbo can weep at their fittings — directly onto some of the hottest parts under the hood.
• Rear main seal. The seal where the crankshaft exits the back of the engine, sandwiched between the engine and the transmission. On most vehicles the transmission has to come out to replace it, which is why it's the leak you want confirmed, not assumed.

There's one more cause that isn't a location at all. The crankcase ventilation system — the PCV system — lets pressure out of the engine as it runs. When it clogs or its valve fails, pressure builds inside the engine and pushes oil past seals that were otherwise fine. Replace a seal without fixing the pressure behind it and the leak comes back, sometimes at a different seal.

Plenty of oil leaks are the ordinary kind. A 2010 Honda Civic came to us with an oil leak and the burning-oil smell that tends to come with one. The fix was a valve cover replacement and an oil change: the leak and the smell were both gone, and the car went back on a normal maintenance schedule. Not every leak is that simple — but a lot of them are, which is exactly why it pays to find the real source before assuming the worst.

Why the drip is almost never the source

Oil goes where gravity and airflow send it. At highway speed on I-93 there is a strong current of air moving under the car, and a leak at the top of the engine gets dragged down and backward along the block. By the time it falls, it can be a foot or more from where it escaped. Many modern cars also have plastic splash shields under the engine that catch oil, hold it, and let it drip from their lowest edge — nowhere near the leak.

The expensive version of this mistake is the rear main seal. A valve cover gasket leaking at the back of the engine, or an oil filter housing leaking into the valley of a V6, can run straight down the back of the block and drip from the joint between the engine and the transmission — exactly where a rear main seal leak shows up. Replace the rear main seal on that evidence and you've paid for a transmission removal and still have the leak. On Chrysler's 3.6-liter V6, for example, the oil filter housing sits in the valley under the intake manifold, and its leaks can look a lot like a seal much farther down.

How we trace an oil leak before quoting a repair

Guessing at oil leaks is how people end up paying for two repairs. We diagnose the cause before recommending a repair on every job, and oil leaks are a textbook case for why. This is the order we work in:

1. 01Ask the right questions. How much oil are you adding, and how often? Where is the spot on the ground? Is there a smell, and when? Did it start after recent work? A few minutes of conversation narrows the search a long way.
2. 02Check the level and the oil itself. A low level confirms oil is leaving. The condition of the oil and the underside of the filler cap can point at a crankcase ventilation problem before we've picked up a tool.
3. 03Inspect from the top, then from underneath. With the car on the lift, we follow the wet trail upward to the highest point where fresh oil appears. The highest wet spot, not the biggest one, is usually closest to the source.
4. 04Clean it and look again when it isn't obvious. An engine coated in old oil and road grime hides everything. Degreasing the area and checking it after a drive shows fresh oil against a clean surface. For stubborn leaks, a fluorescent dye added to the oil glows under a UV light at the exact point it escapes.
5. 05Check what's pushing the oil out. The crankcase ventilation system gets checked, because a seal replaced against excess pressure doesn't stay sealed.
6. 06Scan for related faults. Oil in the spark plug wells shows up as misfire data, and a failed PCV valve often shows up as a lean condition. The scan confirms whether the leak has already started causing other problems.
7. 07Write it down before anything is ordered. Where it's leaking, what it takes to fix, what it costs, and what — if anything — can wait. Nothing gets replaced until you've seen that and told us to go ahead.

Leaking oil, or burning it?

If you're adding oil and there's no wet engine and no spot on the ground, the oil may not be leaking out at all. It may be getting past the piston rings or valve stem seals and burning in the cylinders, getting pulled into the intake by a failed PCV valve, or — on a turbocharged engine — slipping past worn turbo seals. Signs of burning rather than leaking:

• Blue-gray smoke from the tailpipe, especially on a cold start or when you accelerate after coasting downhill.
• Oily black residue inside the tailpipe.
• Oil-fouled spark plugs, and the misfires that come with them.
• Oil consumption that climbs steadily with nothing visible under the hood.

Burning oil is a different diagnosis — sometimes an inexpensive PCV part, sometimes engine work — and it matters for more than the dipstick. Oil going through the combustion chamber is hard on the catalytic converter, and New Hampshire's inspection rules for the exhaust system reject a vehicle when excessive smoke or oil residue escapes from the exhaust, or when flammable material is in contact with the exhaust and causing smoke or a fire hazard. An engine burning enough oil to smoke and a leak dripping onto a hot manifold can both become inspection problems. If you're already holding a rejection slip, our guide to what actually fails a New Hampshire state inspection walks through what to do next.

What New Hampshire does to gaskets and seals

Cold starts and hardened rubber

Gaskets and seals are rubber, and rubber that has been through years of heat cycles gets hard and loses its ability to spring back. Cold makes that worse. An older gasket that held well enough in July can start to seep once overnight temperatures drop, and a cold start is when oil is at its thickest and pressure at its highest. It's common for an oil leak to show up — or get noticeably worse — right around the first hard frost in Manchester.

Short trips and crankcase moisture

A ten-minute drive across town in January never gets the engine fully warm. Water vapor from combustion condenses in the crankcase instead of boiling off, mixes with the oil, and forms the sludge that clogs crankcase ventilation passages. Clogged ventilation means pressure, and pressure means oil pushed past seals. It's one more reason intervals matter — the longer version of that story is in why regular oil changes protect your engine.

Road salt and a grimy underside

Salt season runs from the first storm to the spring washout, and it does two things to an oil leak. It hides it — a slow seep under months of road grime looks like every other dirty engine — and on vehicles with steel oil pans, corrosion around the pan and drain plug can eventually create a leak of its own. Right after an underbody wash is the easiest time to spot a leak yourself: fresh oil shows up clearly on a clean surface.

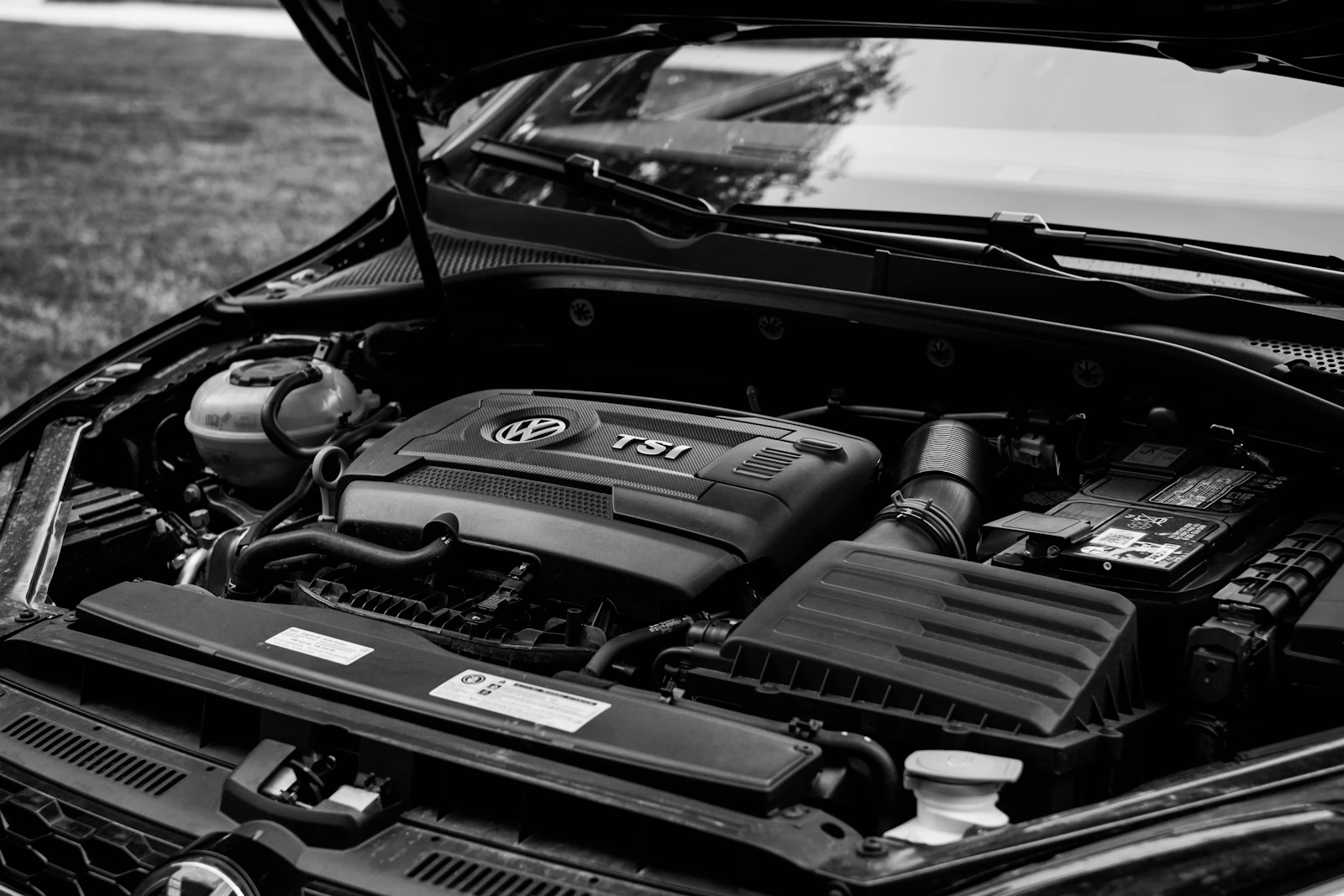

Oil leaks on Audi, VW, BMW, and other European engines

European engines leak from the same kinds of places as everything else, but the details change the job. A few patterns we watch for:

• Crankcase ventilation failures. On many Audi and Volkswagen turbocharged engines, the PCV valve is a known wear item. When its diaphragm fails it can cause rising oil consumption, a whistle or rough idle, and lean codes — and the pressure it allows can push oil out of seals elsewhere on the engine.
• Plastic valve covers with built-in parts. Several European engines integrate the PCV system into a plastic valve cover. When that fails, or the cover itself warps, the fix is the cover rather than just a gasket.
• Oil filter housing gaskets. A well-known leak point on many BMW six-cylinder engines. The housing sits above the accessory belt, so the leak can soak the belt — and a belt softened by oil can shred and get pulled in behind the crankshaft pulley.
• Long valve cover gaskets. On inline-six engines the valve cover gasket runs the full length of the head, and a leak along its exhaust side can drip onto the manifold and produce exactly the burning smell described above.

That's not a knock on European cars. It's the reason platform knowledge matters: on these engines, the difference between a quick repair and a long one is often knowing which plastic part fails and what has to come off to reach it. We go deeper on that side of the work in Audi and European auto service in Manchester, Volkswagen repair in Manchester and BMW repair in Manchester, and valve covers, timing chains, and engine internals are all part of our engine and European repair work.

Do oil stop-leak additives work?

Sometimes, a little, for one specific kind of leak. Most stop-leak products are seal conditioners: they soften and swell rubber seals that have gone hard with age. On an older engine with a slow seep from a dried-out seal, that can slow the seep down. What they can't do is fix a torn or pinched gasket, a cracked housing, a loose drain plug, a failed PCV valve pushing oil out, or a gasket made of material that doesn't swell. If it's a seep from an old seal on a car you're keeping a few more months, a conditioner is a reasonable stopgap. If it's anything else, it's money spent postponing the same repair — which is why it's worth knowing where the leak is before you pour anything in.

Which oil leaks can wait, and which can't

Most oil leaks aren't emergencies. A few are, and the difference usually comes down to where the oil is landing rather than how much of it there is.

Usually fine to schedule in the next few weeks

• A damp, grimy film on the engine with no drips on the ground and an oil level that holds steady between changes.
• A few small spots a week on your cardboard, with the level checked monthly and topped off as needed.
• A leak flagged at an oil change that you can't see or smell yourself — worth confirming, not worth panicking over.

Get it looked at now

• Smoke from under the hood, or a burning-oil smell strong enough to notice in the cabin. Oil is landing on something hot.
• Oil on the accessory belt, or a belt that has started squealing alongside a fresh leak.
• A puddle rather than a spot, or needing to add oil more than once between changes.
• A misfire, rough running, or a flashing check engine light alongside a known leak.
• Any flicker of the oil pressure light. That one means stop driving, not schedule a visit.

If you're not sure which list you're in, call and describe what you're seeing. If "keep an eye on it until your next oil change" is the right answer, that's the answer you'll get.

What an oil leak repair actually involves

The parts in most oil leak repairs are inexpensive — a gasket or seal rarely costs much. The labor is the cost, and it's set almost entirely by what has to come off to reach the leak:

• Top-of-engine work — a valve cover gasket on an accessible four-cylinder, an oil pressure switch, a drain plug — is usually the shortest.
• Valve covers on V6 and V8 engines can mean removing the intake manifold to reach the rear bank, which turns a gasket into a much longer job.
• Oil pan gaskets range from simple to involved, depending on whether a subframe, crossmember, or exhaust section is in the way.
• Rear main seals mean separating the engine and transmission on most vehicles. On a manual-transmission car it often makes sense to look at the clutch while it's apart, since the labor to reach it is already done.

That last point applies more broadly. When an intake manifold comes off to reach a rear valve cover, spark plugs that are due become far easier to replace. When a belt has been soaked in oil, it should be replaced along with the leak that soaked it. We'll point those out and tell you which are worth doing now and which can wait — you decide. What you won't get is a firm number before anyone has found the leak, because that number would be a guess.

We're an independent auto repair shop in Manchester, NH working on domestic and European vehicles, and oil leak repair is everyday work for us — from a drain plug washer to the transmission-out seal jobs other shops would rather not take on. The order of operations never changes: find the real source, explain it plainly, and get your go-ahead before anything is replaced. Serving Manchester, Bedford, Hooksett, Goffstown, Auburn, Londonderry, and Derry — contact Pro Tech Auto to set up a visit.
